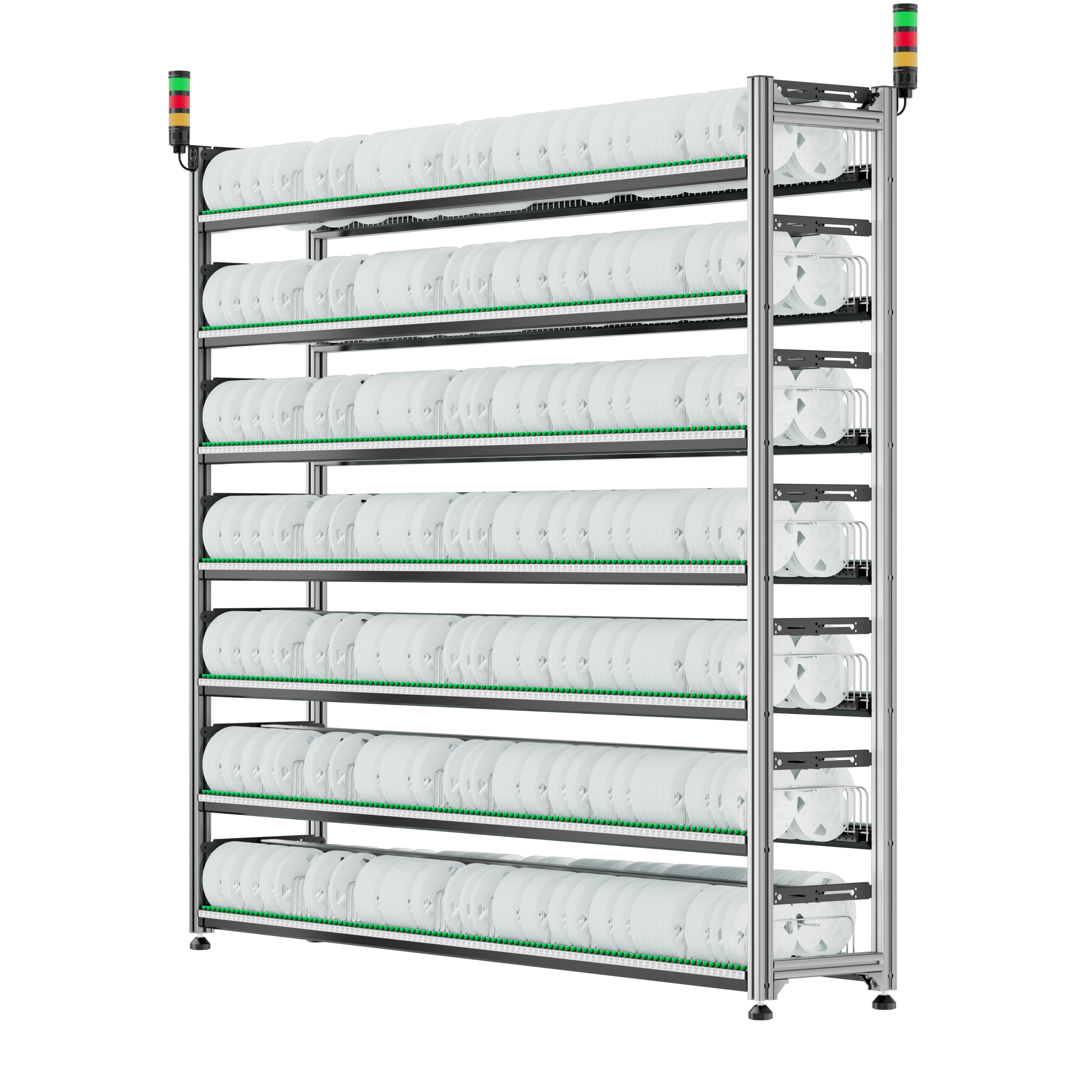

RACK-G3-SMDS-AL-A7-ASN (Tower light type)/SMT INTELLIGENT ELECTRONIC RACK Intelligent Material Storage Rack with Sensor Type

SMT Esd PCB Storage Smart Storage Rack for Large Industrial Warehouse Intelligent SMT Component Rack

●7 layers of doub le-s ided storage, each layer has 200 standard storage pos it ions, and each group has 1400 standard storage pos it ions ;

● The standard storage space is 16mm wide, the storage space barrier can be inserted and removed, and the storage space width can be adjusted;

● The storage position is multi-color LED aluminum alloy lamp group can be quickly plugged and unplugged;

Product Name	RACK Intelligent Material Storage Rack with Sensor Type
Model	RACK-G3-SMDN-AL-A7-ANS(Tower light type)
Applicable Tray	7 inch thick plate material
Storage Quantity	1400 standard storage positions/inner width 1 6 mm
Shelf Weight	100KG
Shelf Load	100KG/ layer
Length	20963801940mm
Store Lights	Smart bus multi-color lights, support 7 colors
Induction Mode	Non-contact mutual photoelectricity
Take the height of the top layer	1787mm
Storage compartment partition	Flexible design, can be plugged and unplugged to adjust the width of the storage space
Protect The Fins	Protective fins are optional for vacuum packaging materials
Working Voltage	DC 24V
Power Rating	0.1KW
Network	Uplink network cable communication, downlink 485 communication.
Operational Environment	Humidity 40-70% temperature 20-28℃

Product model	RACK-G3-SMDN-AL-A7-ANS(Tower light type)
Supply voltage	DC24V
Working current	50 indicator light bars ≦ 400mA @DC24V six colors maximum total current ≦ 2100mA @DC24V
Communication bus IB	38.4K baud rate, maximum transmission distance of 200 meters
Electrical protection	Overcurrent, overvoltage protection, reverse connection protection
Maximum indicated storage location	100pcs
Response time	<30ms
Working environment	Temperature: -20℃ to +50℃(-4F to +122°F) Humidity: 90% at 55'℃ (no condensation)
