Leenol ESD Anti-Static Plastic Container ESD Boxes
Anti-static storage boxes are used for safely transporting or storing electronic devices that are prone to damage caused by electrostatic discharge (ESD) – the flow of electricity between two electrically charged objects.
Molding Injection
Material: PP compound.
Usage: to store and transportation electronice components, PCBs, and so on.
Surface resistance: 10e3-10e9 ohms
ESD corrugated divider canbe matched inside.
Corrugated cover or molded cover is avaliable to prevent dust.
It can print logo, stacking.
Below size for reference, more size please contact us.
ESD Box Size List | |||||
Model | E*t.dim.mm | Int.dim.mm | Model | E*t.dim.mm | Int.dim.mm |
(L*W*H) | (L*W*H) | (L*W*H) | (L*W*H) | ||
*LN-1526132 | 615*430*320 | 580*395*310 | *LN-1525342 | 530*380*420 | 465*345*410 |
*LN-1526125 | 615*430*250 | 580*395*245 | *LN-1525328 | 530*380*285 | 465*345*275 |
*LN-1526120 | 615*430*200 | 580*395*195 | *LN-1525323 | 530*380*230 | 465*345*220 |
*LN-1526115 | 615*430*150 | 580*395*145 | *LN-1525316 | 530*380*165 | 465*345*160 |
*LN-1526540 | 600*500*400 | 560*460*390 | *LN-1525312 | 530*380*125 | 465*345*120 |
*LN-1526535 | 600*500*355 | 560*460*350 | *LN-1524328 | 400*300*280 | 365*265*275 |
*LN-1526530 | 600*500*305 | 560*460*300 | *LN-1524323 | 400*300*230 | 365*265*220 |
*LN-1526525 | 600*500*255 | 560*460*250 | *LN-1524317 | 400*300*170 | 365*265*165 |
*LN-1526516 | 600*500*160 | 560*460*155 | *LN-1524315 | 400*300*148 | 365*265*135 |
*LN-1526445 | 600*400*450 | 565*363*440 | *LN-1524312 | 400*300*120 | 365*265*115 |
*LN-1526440 | 600*400*400 | 565*363*390 | LN-1523215 | 300*200*148 | 265*165*135 |
*LN-1526434 | 600*400*340 | 565*365*330 | LN-1523212 | 300*200*120 | 265*165*115 |
*LN-1526428 | 600*400*280 | 565*365*270 | LN-1526941 | 690*485*410 | 650*450*400 |
*LN-1526423 | 600*400*230 | 565*365*220 | LN-1527418 | 700*450*180 | 665*415*170 |
*LN-1526417 | 600*400*170 | 565*365*160 | LN-1527423 | 700*450*230 | 665*415*220 |
*LN-1526415 | 600*400*148 | 565*365*137 | LN-1526544 | 650*440*350 | 610*400*340 |
*LN-1526412 | 600*400*120 | 565*365*110 | LN-1526640 | 660*400*165 | 620*365*160 |
*LN-1525438 | 545*425*380 | 510*390*370 | LN-1525426 | 540*415*260 | 500*380*250 |
*LN-1525430 | 545*425*305 | 510*390*300 | LN-1522107 | 480*350*175 | 440*320*165 |
*LN-1525424 | 545*425*240 | 510*390*230 | LN-1524215 | 420*310*150 | 380*280*145 |
*LN-1525415 | 545*425*150 | 510*390*145 | LN-1523613 | 360*270*135 | 320*240*125 |

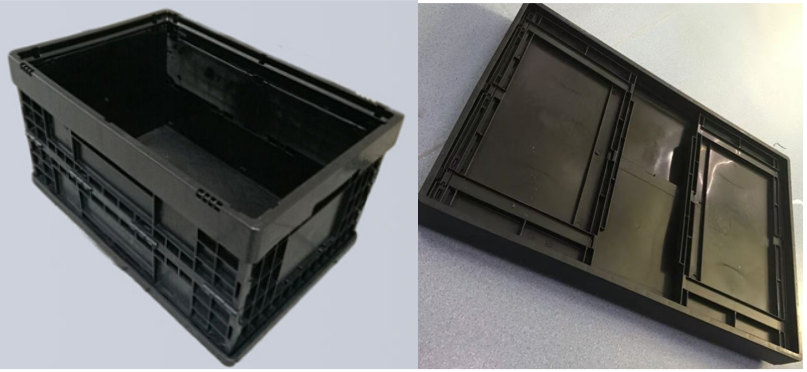

Folding Box Size Table | |||||
Model |
Ext.dim.mm (LxWxH) |
Int.dim.mm (LxWxH) |
Model |
Ext.dim.mm (LxWxH) |
Int.dim.mm (LxWxH) |
LN-1526434Z | 600x400x340 | 565x365x330 | LN-1525111 | 541x365x190 | 496x331x170 |
LN-1526428Z | 600x400x280 | 565x365x270 | LN-1525101 | 541x366x250 | 496x331x230 |
LN-1526423Z | 600x400x230 | 565x365x220 | LN-1525102 | 541x366x295 | 496x331x275 |
LN-1526415Z | 600x400x148 | 565x365x137 | LN-1525103 | 541x366x325 | 496x331x305 |
LN-1525112 | 541x366x375 | 496x331x355 | LN-1525108 | 540x423x303 | 495x395x280 |
LN-1525107 | 540x423x421 | 495x395x392 | LN-1525106 | 607x495x303 | 558x458x280 |
LN-1525109 | 607x495x404 | 558x458x383 | LN-1525114 | 647x443x280 | 602x408x260 |
LN-1525113 | 540x423x250 | 495x395x240 | LN-1525115 | 647x443x345 | 602x408x335 |
Anti-static Component Box Size Table | |||
Model | Contour Size(mm) | Inner Size(mm) | Type |
No.1 | 95x105x50 | 80x95x40 | Hanging |
No.2 | 165x95x70 | 148x86x60 | Hanging |
No.3 | 175x105x80 | 158x95x70 | Hanging |
No.4 | 200x130x90 | 180x113x80 | Hanging |
No.5 | 223x155x120 | 215x140x112 | Hanging |
No.6 | 130x125x65 | 110x105x55 | Hanging |
No.8 | 400x117x90 | 360x92x80 | 8 grids Can be divided |
No.9 | 400x235x90 | 360x210x80 | |
NO.12 | 500x235x140 | 460x205x135 | 9 grids Can be divided |
NO.13 | 600x235x140 | 560x205x135 | 11 grids Can be divided |
Model | Contour Size(mm) | Inner Size(mm) | Type |
H1 | 104x104x49 | 88 x87 x40 | Vertical |
H2 | 140x122x68 | 125 x109 x65 | Vertical |
H3 | 180x121x79 | 150x100 x76 | Vertical |
H4 | 253x155x125 | 210 x132 x115 | Vertical |
H5 | 352x201x143 | 303 x175 x135 | Vertical |

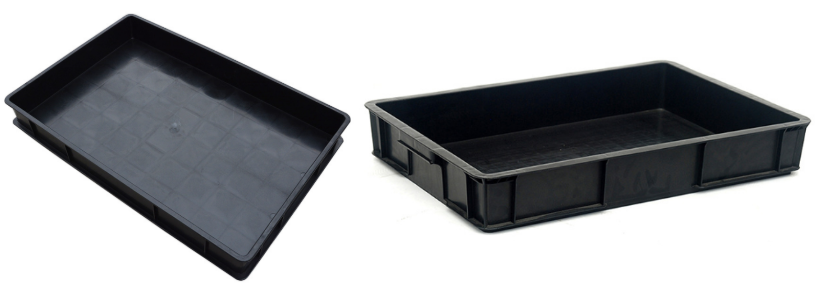

Anti-static Pallet Size Table | ||
Model | Ext.dim.mm | Int.dim.mm |
(L×W×H) | (L×W×H) | |
LN-1522108 | 450×300×60 | 430×280×50 |
LN-1522108A | 450×300×45 | 430×280×38 |
LN-1522118 | 440×290×50 | 400×265×45 |
LN-1522121 | 375×250×65 | 345×225×60 |
LN-1522122 | 440×295×80 | 410×265×75 |
LN-1522123 | 560×375×75 | 525×330×70 |
LN-1522126 | 315×230×43 | 300×215×37 |
LN-1522133 | 480×328×42 | 445×292×35 |
LN-1522135 | 615×420×95 | 570×370×90 |
LN-1522140 | 226×166×29 | 214×154×25 |
LN-1522141 | 289×195×26 | 274×183×23 |
LN-1522142 | 315×290×29 | 136×58×20 |
LN-1522144 | 375x308x30 | 360x294x23 |
LN-1522145 | 530x365x43 | 510x350x33 |
LN-1522146 | 350x260x35 | 315x230x30 |
LN-1524435 | 440x353x50 | 410x320x45 |
