Introduction

Leenol Large Reels Aluminum Intelligent rack with QR code adjustable storage locations factory

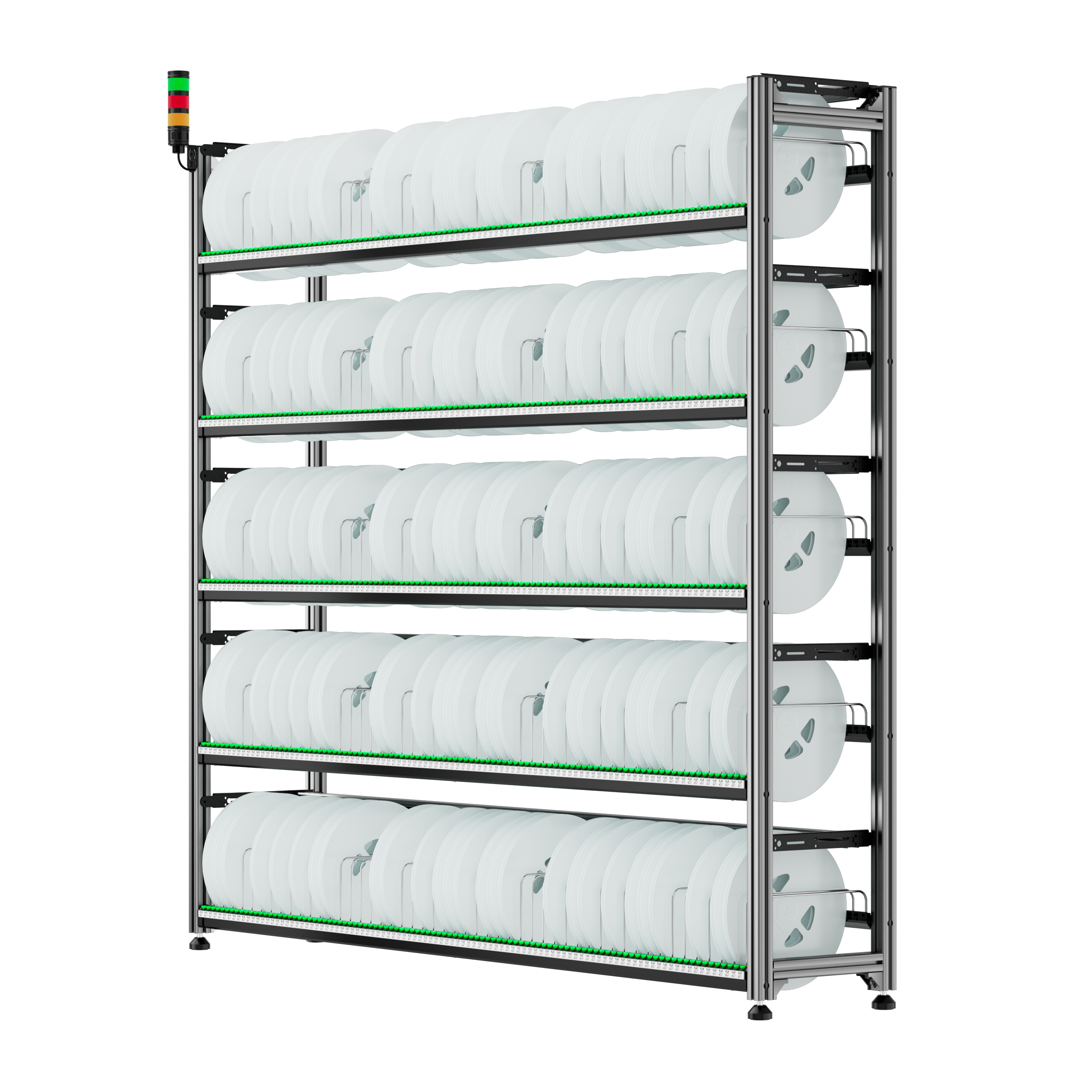

LEENOL RACK-G3-SMDN-AL-B5-ASN(Tower light type)/SMT INTELLIGENT ELECTRONIC RACK SMT Esd PCB Storage Smart Storage Rack for Intelligent Material Storage Rack with Sensor Type

5 layers of single -sided storage, each layer has 50-100 standardstorage positions, and each group has a total of 250-500 standardstorage positions ;

The standard storage space is 16mm wide, the storage spacebarrier can be inserted and removed, and the storage space widthcan be adjusted;

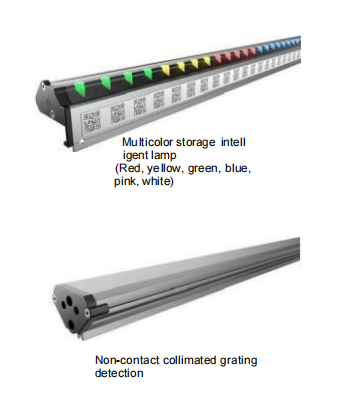

The storage unit is a multi-color LED aluminum alloy lamp groupthat can be quickly plugged and unplugged.

The overall material is 4040 industrial aluminum profile frame +aluminum prof intelligent lamp group + stainless steel wire grillePlug-in adjustment to store the inner width of the whole;

Scan type/pairing induction is optional;

Product Name	Intelligent Material Storage Rack with Sensor Type
Model	RACK-G3-SMDN-AL-B5-ASN(Tower light type)
Applicable Tray	13 inch plate material of various thicknesses
Storage Quantity	500 standard storage positions with an inner width of 16mm
Shelf Weight	100KG
Shelf Load	100KG/ layer

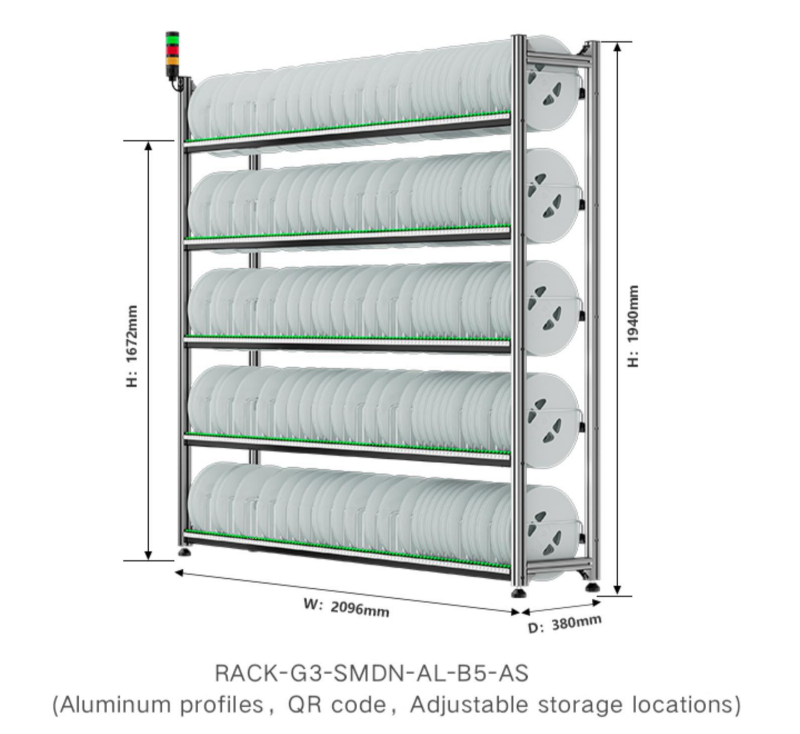

Length	20963801940mm
Store Lights	Smart bus multi-color lights, support 7 colors
Induction Mode	Non-contact mutual photoelectricity
Take the height of the top layer	1619mm
Storage compartment partition	Flexible design, can be plugged and unplugged to adjust the width of the storage space
Protect The Fins	Protective fins are optional for vacuum packaging materials
Working Voltage	DC 24V
Power Rating	0.1KW
Network	Uplink network cable communication, downlink 485 communication.
Operational Environment	Humidity 40-70% temperature 20-28℃

Product model	RACK-G3-SMDN-AL-B5-ASN(Tower light type)
Supply voltage	DC24V
Working current	50 indicator light bars ≦ 500mA @DC24V six colors maximum total current ≦ 2600mA @DC24V
Communication bus IB	38.4K baud rate, maximum transmission distance of 200 meters
Electrical protection	Overcurrent, overvoltage protection, reverse connection protection
Maximum indicated storage location	50 pcs
Response time	<30ms
Working environment	Temperature: -20℃ to +50℃(-4F to +122°F) Humidity: 90% at 55'℃ (no condensation)
