Antistatic system must have independent and stable grounding system,grounding resistance should be less than 10 ohm.
The ground of antistatic working area should lay esd or conductive tileor conductive rubber floor mat.
Antistatic working area should mark label,hanging warning logo inobvious place.
The antistatic workbench could discharge the static with esd groundingsocket and match with antistatic chair.

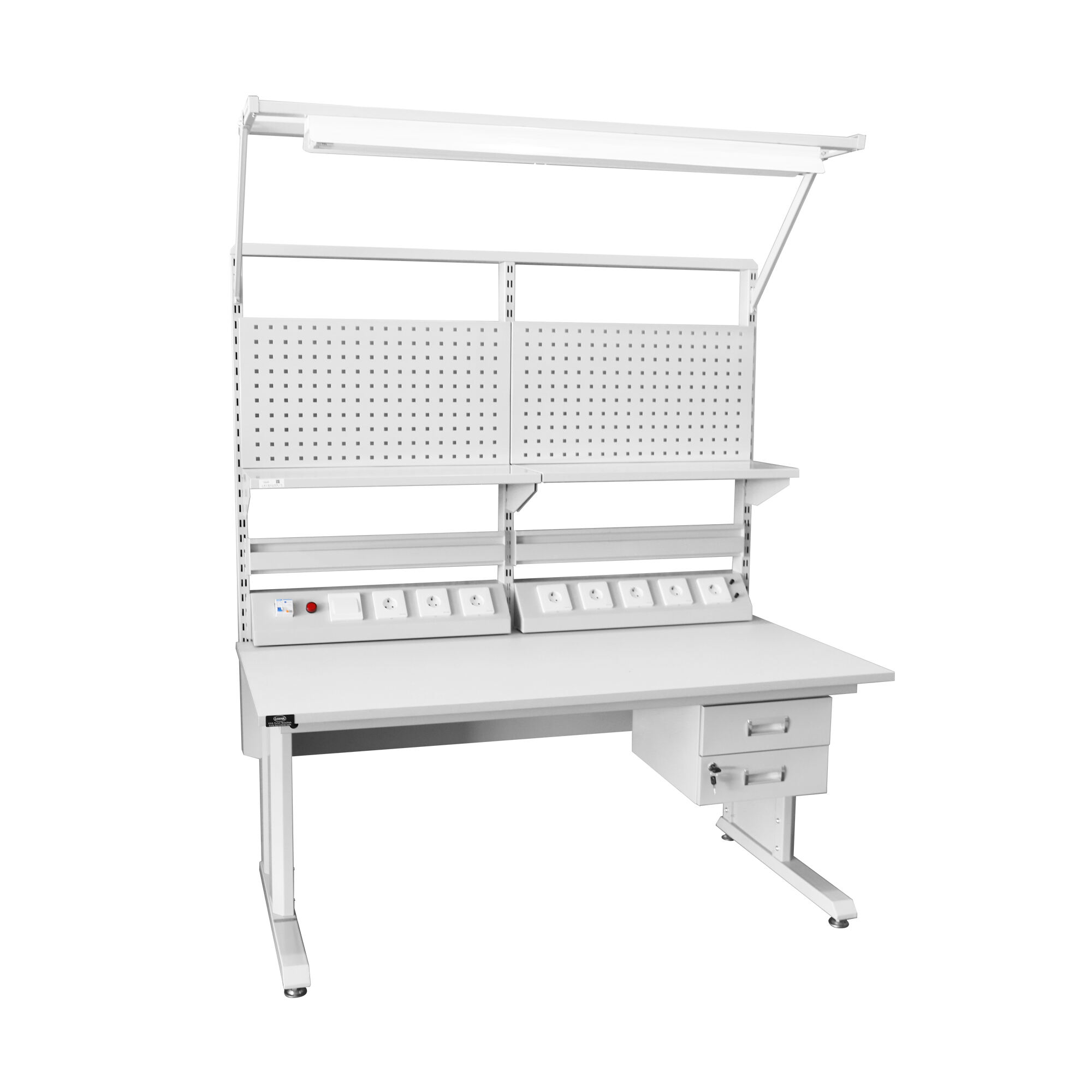

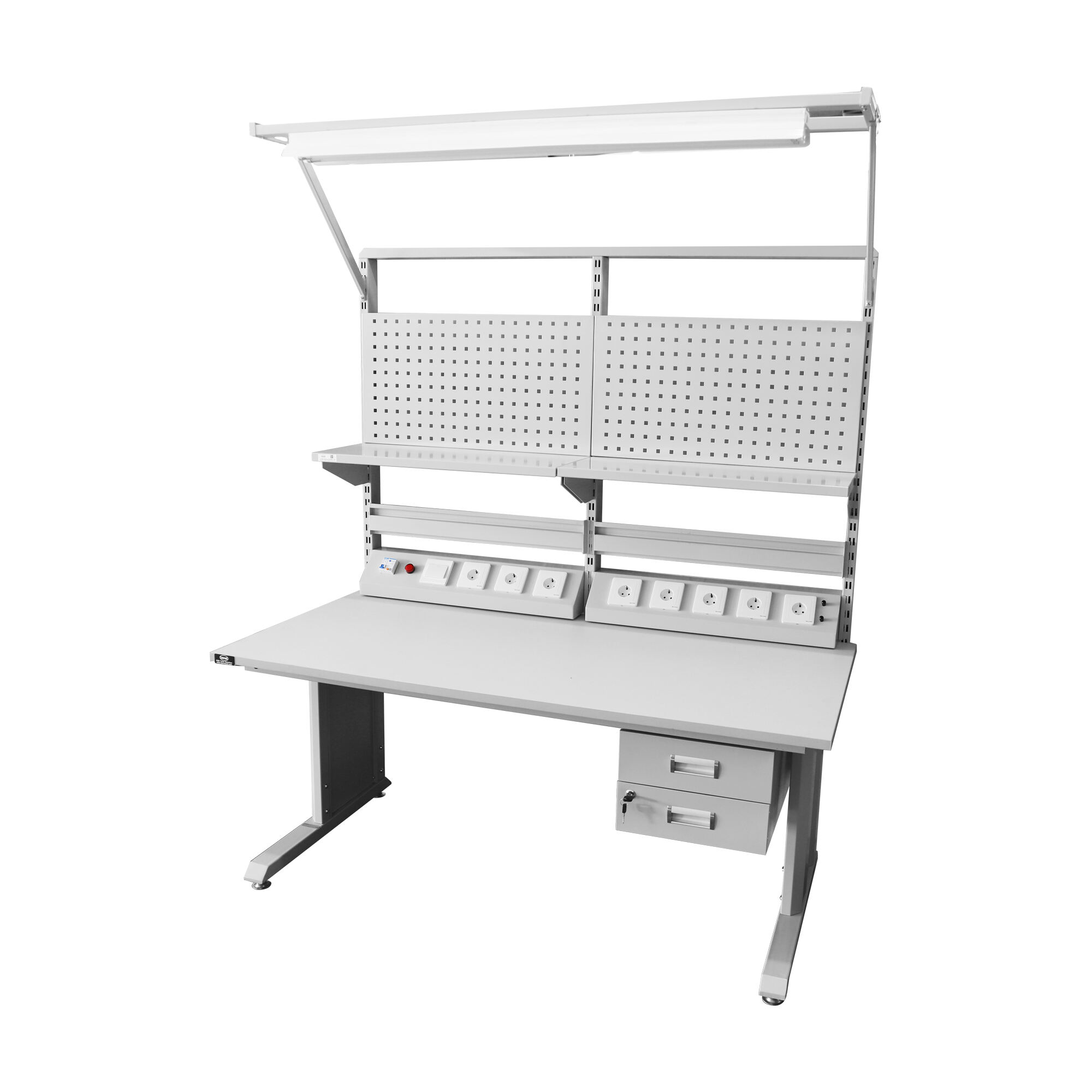

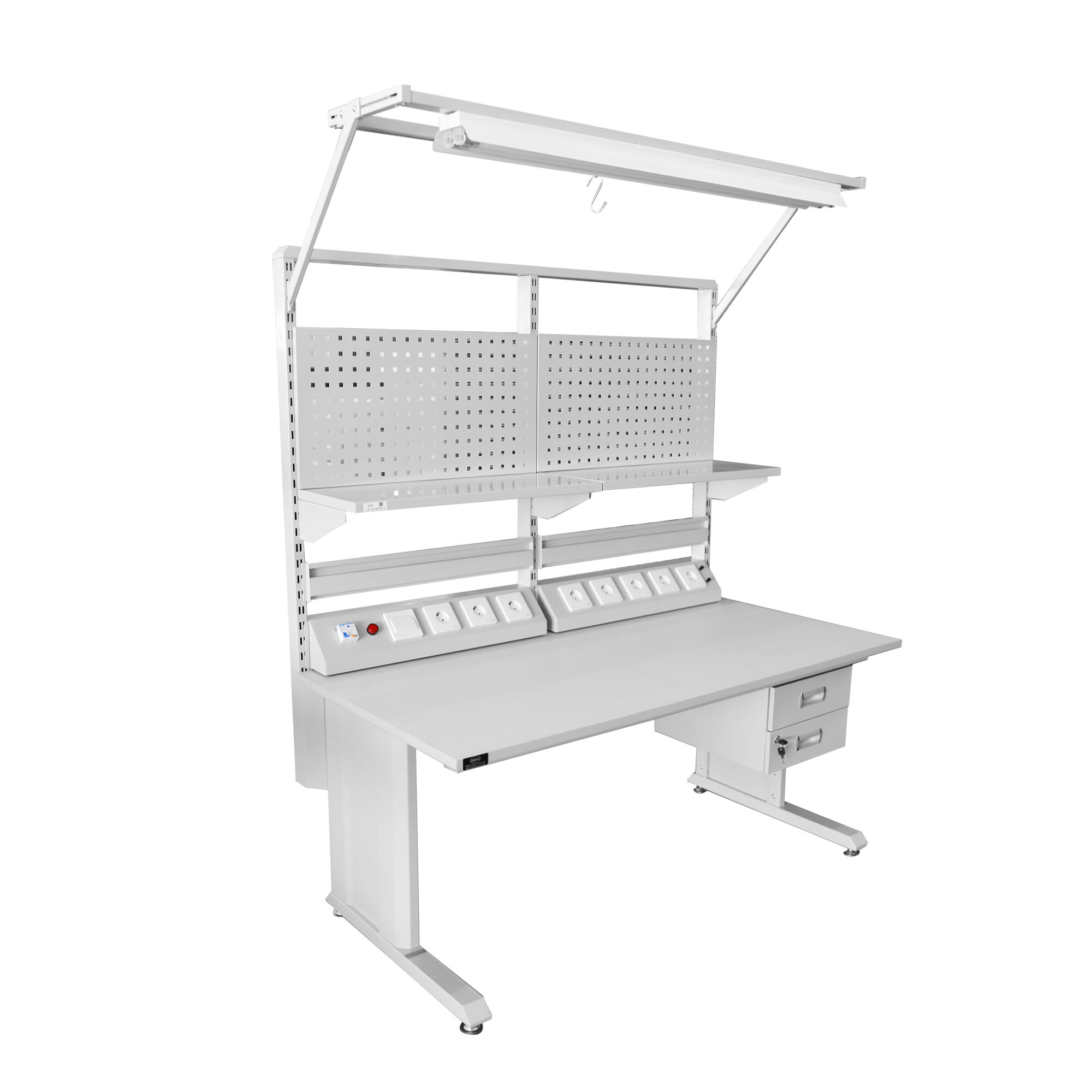

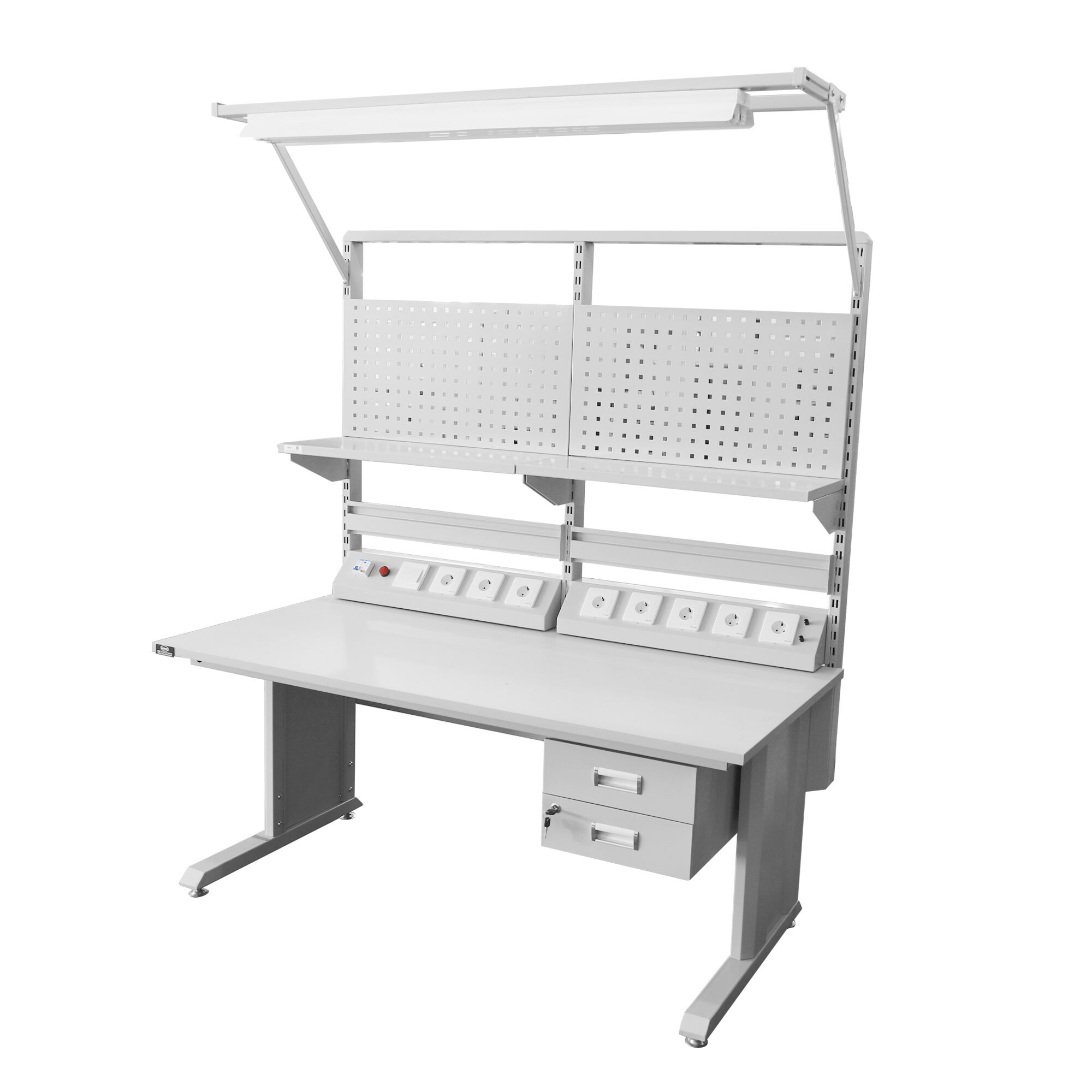

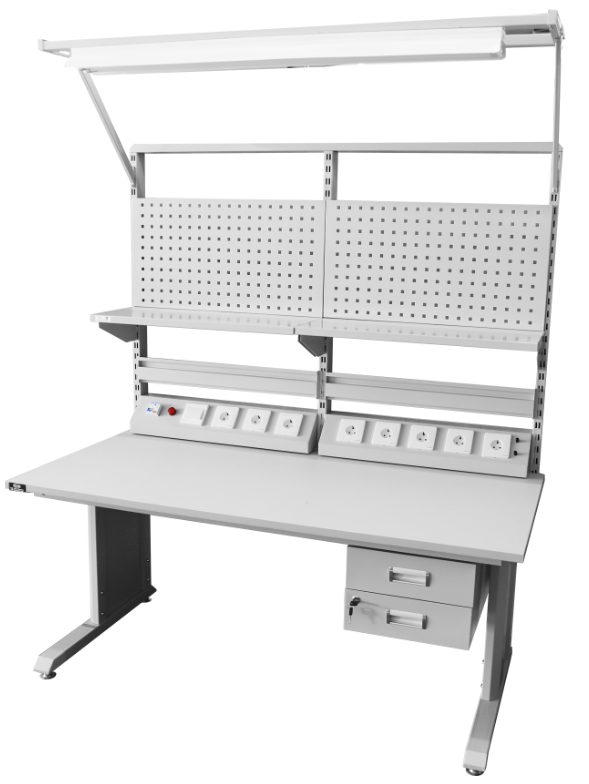

Antistatic Workbench Tabletop Series(thickness: 25mm/50mm)
| Spare Part Name | Spec. | Qty |
| STANDARD ADJUSTABLE TABLE SUPPORT | 1500×750mm Load: 500kg , adjustable height: 670-1120mm | 1 |
| ESD DOUBLE-FACE TABLE TOP | 1530×750×25mm Grey top, Grey edge | 1 |
| PERFORATED TUBULAR FRAME SET | 2M750×1359mm, double side with perforated | 1 |
| PERFORATED BACK PANEL | M750×390mm grey color, standard hole: 9*9mm | 2 |
| ESD UPPER SHELF | M750×300mm＋single rack support, Load: 50kg | 2 |
| LED LIGHT | 2×30W,1040×140×60mm, Euro/UK/USA plug | 1 |
| ESD DOUBLE LAYER DRAWER | 350×450×250mm Load:15kg | 1 |
| SUSPENSION RAIL | M750mm Load: 30kg | 2 |
| Power Supply Box | Euro/UK/USA sockets | 1 |
ESD Workbench Advantage:
Humanized design, in line with ergonomic principles, comfortable and beautiful, and improve production efficiency
Modular design, a variety of accessories can be combined as needed, and are interchangeable
Standardized design, you can customize the products you need according to different requirements
High-quality countertops are made of anti-static fireproof board, which has the characteristics of double-sided overall anti-static, fireproof, wear-resistant and so on.
The support adopts the optimized design of steel structure, and is made of high-quality cold-rolled steel plate, which is strong and durable
The metal surface is pickled and phosphated, and it is sprayed with high-quality anti-static powder and high-voltage electrostatic. It is flat and beautiful, and will not yellow or fade after long-term use
Overall anti-static, fundamentally eliminate the threat of potential static to the product.
Our professional sales team are waiting for your consultation.
