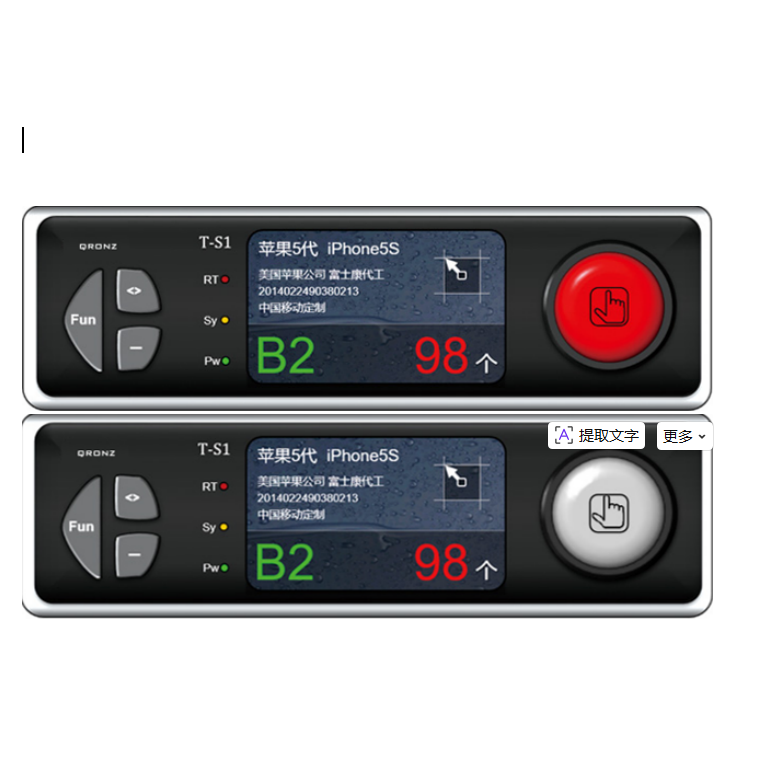

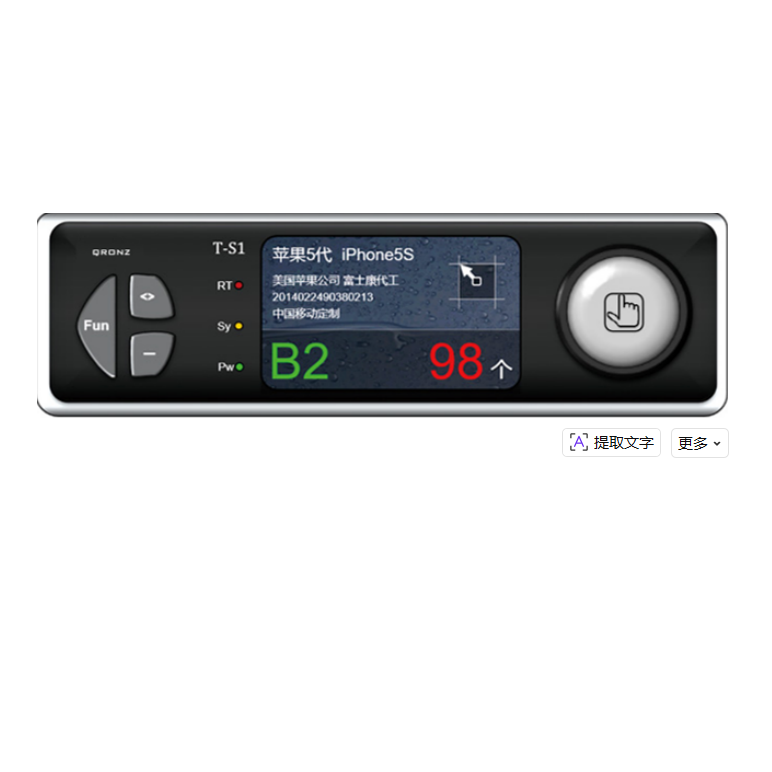

Leenol T-ES1 Color Screen Electronic Picking Label for Warehouse Storage

Color Screen Picking Label T-ES1 for Warehouse Storage Leenol T-ES1 Color Screen Electronic Picking Label for Warehouse Storage

Styling Instructions

Model: T

Display: ES1 Color screen display

Language: CEN (Chinese and English versions)

Product Specifications

Power Supply Voltage and Current: DC 12V-30V

Maximum Current: 20-160mA/12V; 10-80mA/24V

Output Power: 1.08~2.16W

Communication Bus: RS485

Indicator Light: RGB three-color, 50,000 hours lifespan

Communication Rate: 38.4K baud rate

Electrical Protection: Overcurrent and overvoltage protection; reverse polarity protection

Housing Material: High-molecular polymer

Operating Environment: -40℃ to 80℃ (non-condensing)

Humidity Environment: Below 90%RH, non-condensing

Protection Rating: IEC IP53

Certifications: CE, FCC, ISO9001

T-ES1 Color Screen Electronic Picking Label Parameter

Size specifications                                                               Function Description

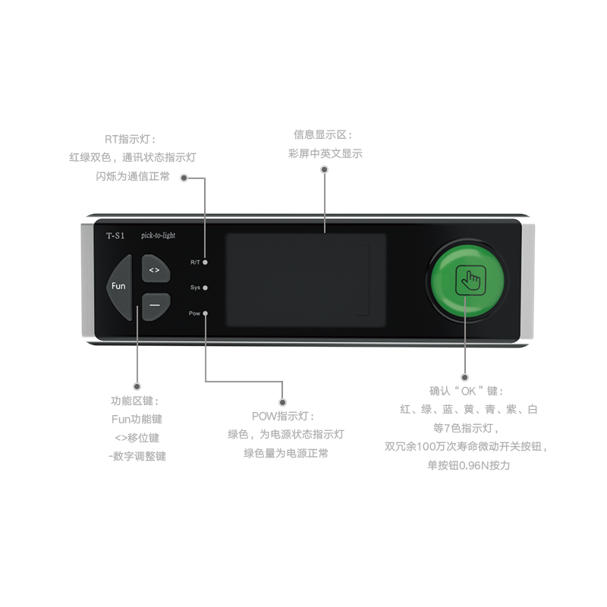

 Function Description

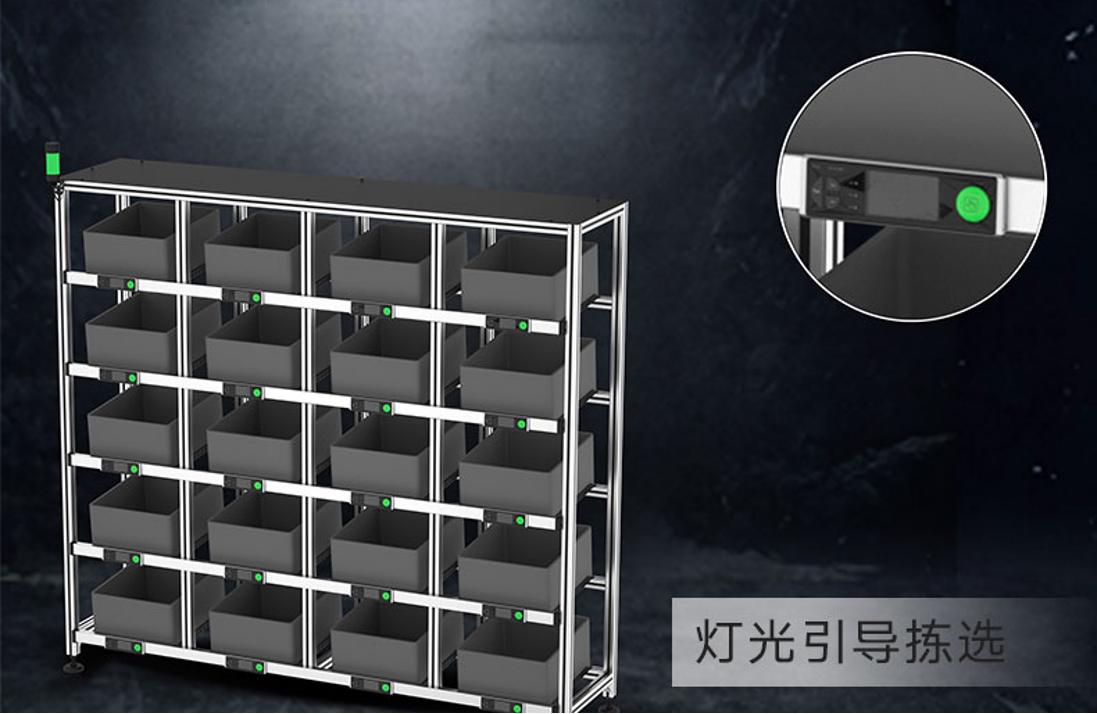

T-ES1 Color Screen Electronic Picking Label Application
