leenol T-P0 0-Digit Electronic Picking Label Low-power design, with an operating current as low as 10mA Protection Rating：IEC IP53

leenol T-P0 0-Digit Electronic Picking Label Low-power design, with an operating current as low as 10mA Protection Rating：IEC IP53

Introduction
More Products
Inquiry

Introduction

Equipment Specifications 0-Digit Electronic Picking Label

The protection grade of the electronic tag shall not be lower than the IP54 protection standard.

2) It adopts industrial wide-voltage (industrial 12V to 30V) DC power supply, with strong resistance to voltage sags. Weak current is prone to power failure, causing unstable voltage. Wide voltage can prevent power failure from causing power supply problems for equipment.

3) Low-power design, with an operating current as low as 10mA;

4) It adopts industrial bus technology, with a maximum communication distance of up to 200 meters.

5) Bus technology does not require separate wiring for each tag device

6) The communication rate can reach 38,400 BPS.

7) It realizes the self-check function upon power-on without the need for third-party devices or software to participate.

8) Design three sets of status indicator lights to make the working status of the equipment clear at a glance and quickly determine the cause of the fault.

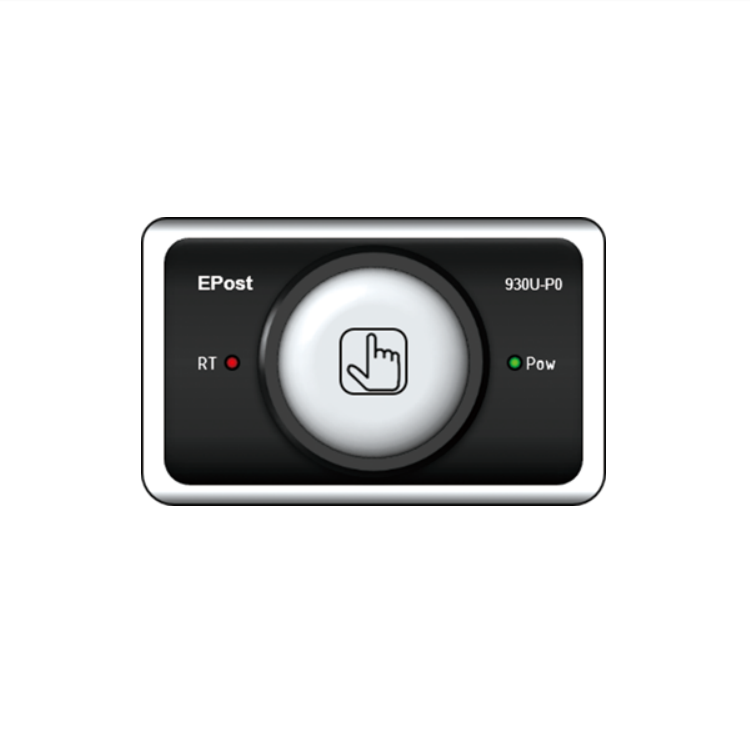

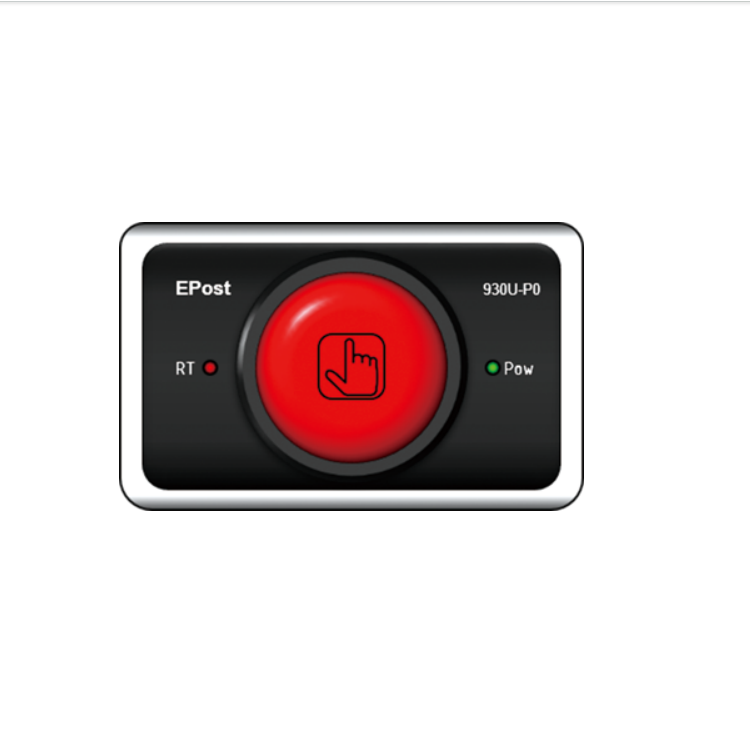

T-P0 0-Digit Electronic Picking Label

Styling Instructions

Model：T Number of digits on the digital display：P0 0 Digital tube

Product Specifications

Power Supply Voltage and Current：DC 12V-30V

Maximum Current 20-160mA/12V；10-80mA/24V Output Power：1.08~2.16w

Communication Bus：RS485

Indicator Light：RGB three-color, 50,000 hours lifespan

Communication Rate：38.4K baud rate

Electrical Protection: Overcurrent and overvoltage protection; reverse polarity protection

Housing Material: High-molecular polymer Operating

Environment: -40℃ to 80℃ (non-condensing) Protection Rating：IEC IP53
