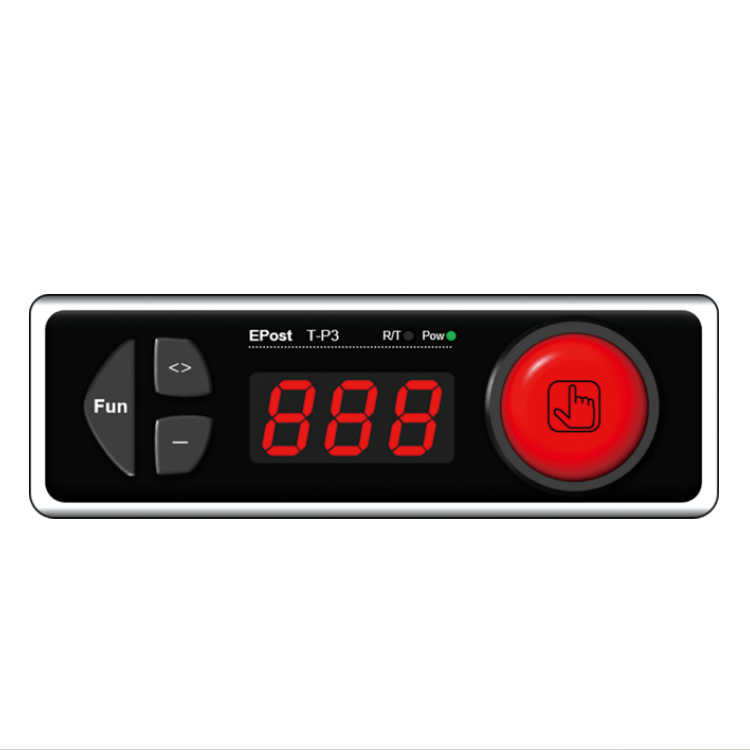

Leenol T-P3 3-Digit Electronic Picking Label Three-digit electronic picking label

Leenol T-P3 3-Digit Electronic Picking Label Three-digit electronic picking label

Styling Instructions

Model：T

Number of digital display digits: P3 (3-digit digital display)

Digital display combination: R3 (3-digit red display)

Product Specifications

Supply voltage and current：DC 12V-30V

Maximum current: 20-160mA/12V; 10-80mA/24V

Output power: 1.08~2.16W Communication bus: RS485

Indicator light: RGB three-color, 50,000 hours lifespan

Communication speed: 38.4K baud rate

Electrical protection: Overcurrent and overvoltage protection; reverse  polarity protection

Housing material: High-performance polymer

Operating environment: -40℃ to 80℃ (non-condensing)

Humidity environment: Below 90% RH, non-condensing

Protection rating: IEC IP53  Certifications: CE FC ISO9001

T-P3 3-Digit Electronic Picking Label Parameter

Size specifications                                                         Function Description

Function Description

T-P3 3-Digit Electronic Picking Label Application
