Leenol T-P3S 3-Digit Electronic Picking Label Warehouse Picking System - Pick to Light - Eletronics Picking Label

Leenol T-P3S 3-Digit Electronic Picking Label Warehouse Picking System - Pick to Light - Eletronics Picking Label

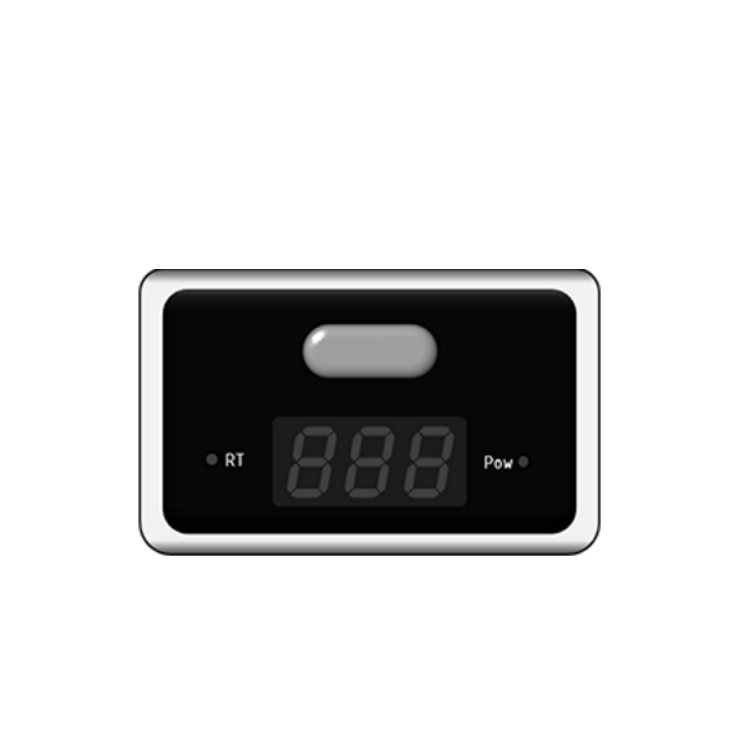

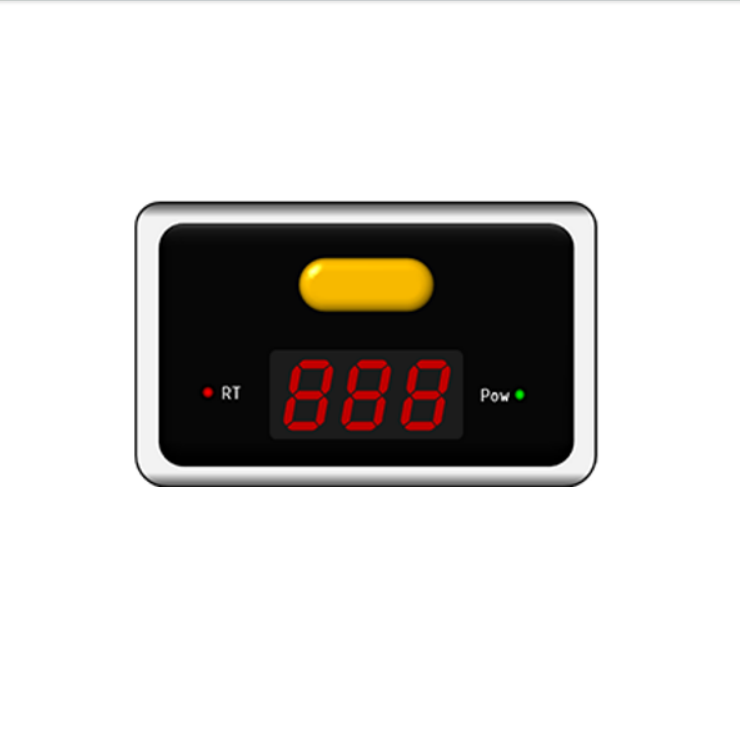

T-P3S 3-Digit Electronic Picking Label/Three-digit electronic picking label

Styling Instructions

Model：T-P3S

Digital display digits: P3S 3-digit mini digital display

Product Specifications

Power Supply Voltage and Current：DC 12V-30V

Maximum Current20-160mA/12V；10-80mA/24V

Output Power：1.08~2.16w

Communication Bus：RS485

Indicator Light：RGB three-color, 50,000 hours lifespan

Communication Rate：38.4K baud rate

Electrical Protection: Overcurrent and overvoltage protection; reverse polarity protection

Housing Material: High-molecular polymer

Operating Environment: -40℃ to 80℃ (non-condensing)

Protection Rating：IEC IP53

Certifications：CE FC ISO9001

T-P3S 3-Digit Electronic Picking Label Parameter

Size specifications                                                           Function Description

Function Description

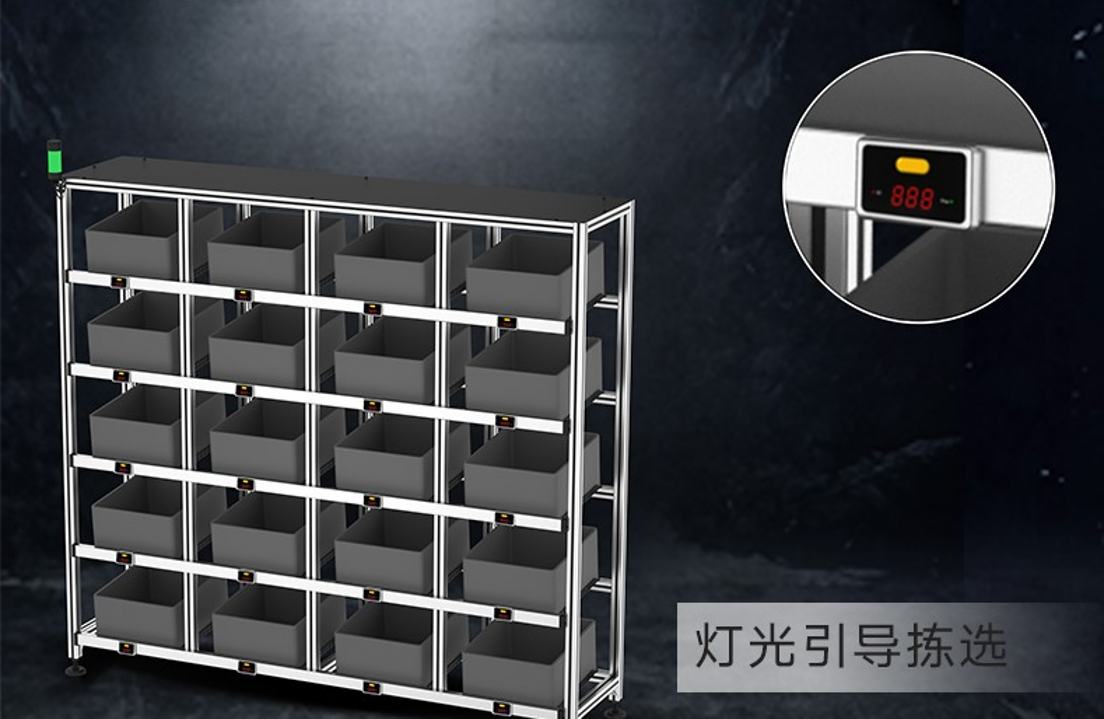

T-P3S 3-Digit Electronic Picking Label Application
