Leenol T-P4IR 4-Digit Electronic Picking Label Pick to Light - Eletronics Picking Label

Leenol T-P4IR 4-Digit Electronic Picking Label Pick to Light - Eletronics Picking Label

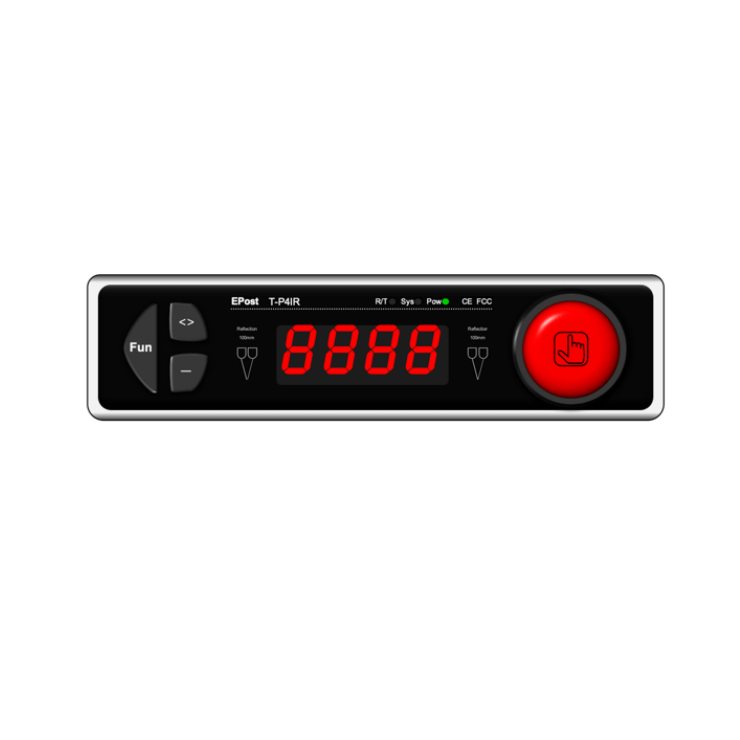

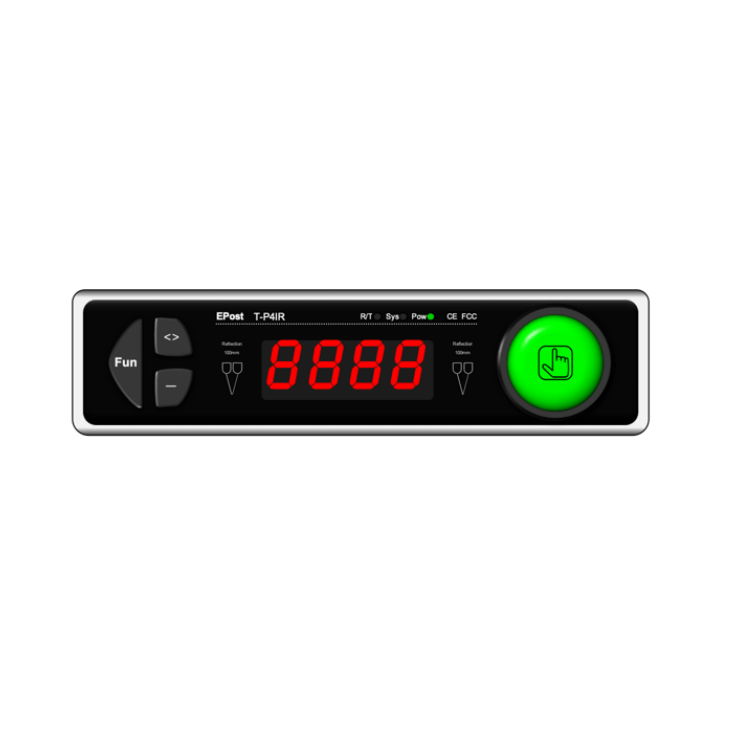

T-P4IR 4-Digit Electronic Picking Label

Styling Instructions

Model：T

Digital tube display digits: P4 4-digit digital tube

Infrared light: IR Infrared light sensing confirmation

Digital tube combination: R3 3-digit red, G2R2 2-digit green and 2-digit red

Product Specifications

Power Supply Voltage and Current: DC 12V-30V

Maximum Current: 20-160mA/12V; 10-80mA/24V

Output Power: 1.08~2.16W Communication Bus: RS485

Indicator Light: RGB three-color, 50,000 hours lifespan

Communication Rate: 38.4K baud rate

Electrical Protection: Overcurrent and overvoltage protection; reverse connection protection

Housing Material: High-molecular polymer

Operating Environment: -40℃ to 80℃ (non-condensing)

Humidity: Below 90%RH, non-condensing

Protection Rating: IEC IP53  Certifications: CE, FCC, ISO9001

T-P4IR 4-Digit Electronic Picking Label Parameter

Size specifications                                                                  Function Description

Function Description

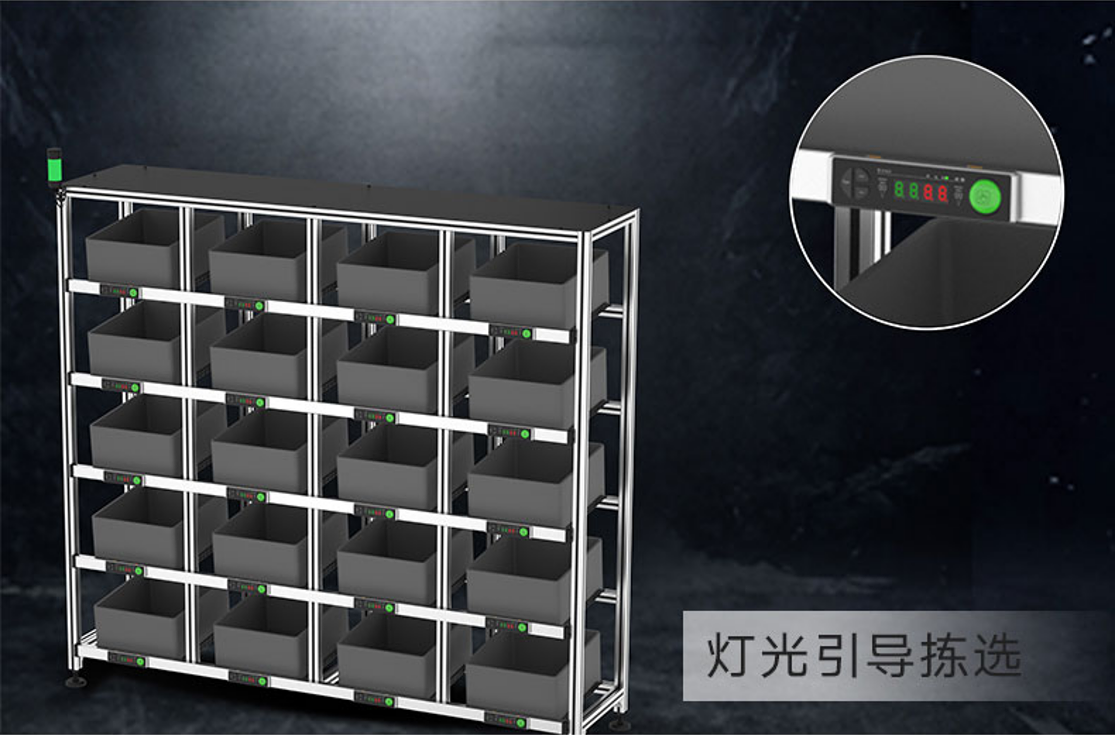

T-P4IR 4-Digit Electronic Picking Label Application
