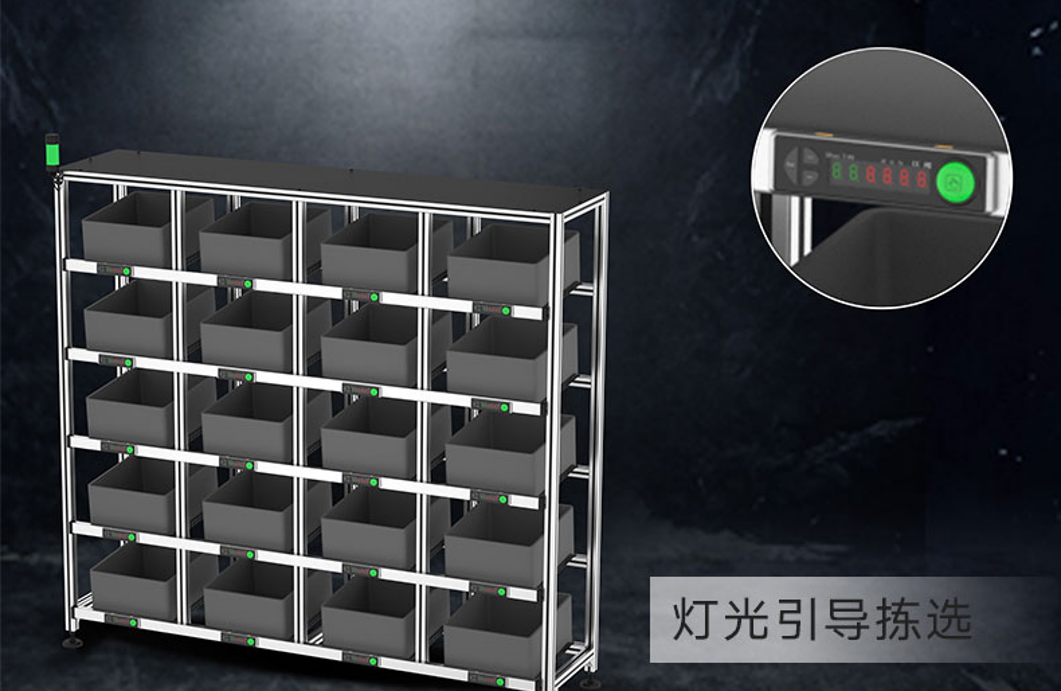

Warehouse 6-Digit Digital Tube Electronic Shelf Label Pick System is a kind of advanced light guiding technology, which replaces the picking list with a complete set of electronic display devices (such as signal lights, displays, confirmation buttons) on the shelf space to increase the working efficiency of the warehouse or distribution center. It is a paperless, efficient and cost-effective solution.
Picksmart Pick To Light System has been successfully applied to e-commerce,logistics,electronics,daily chemical, medicine, clothing,precision hardware, auto parts, packaged food, printing, jewellery, fresh cold chain,retail distribution industries, as far as relate to material picking ,sorting and circulation control, all can be good to solve by pick to light system, and it also can seamless docking enterprises's ERP, WMS, MES system, improve efficiency, prevent mistakes.
Styling Instructions
Model：T

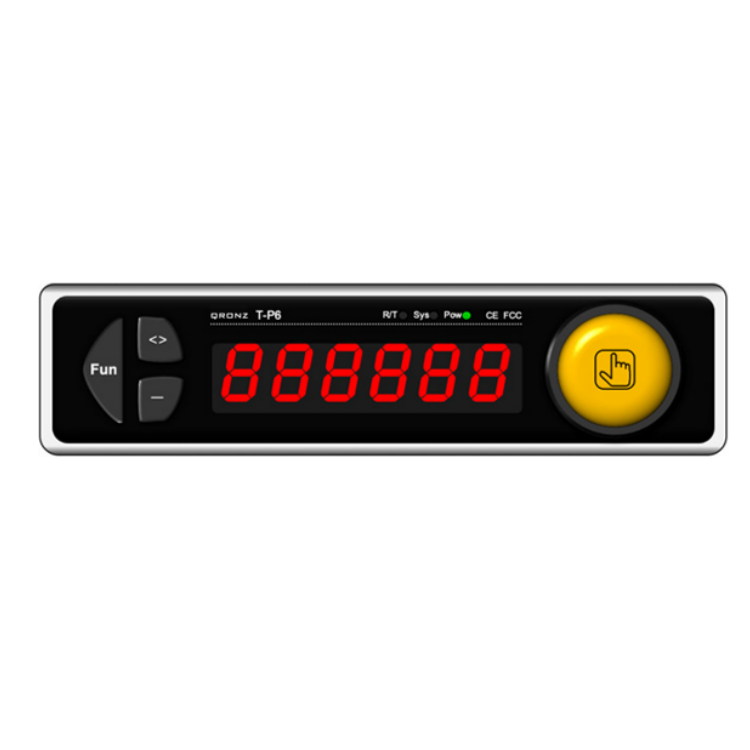

Digital tube display digits: P6 6-digit digital tube

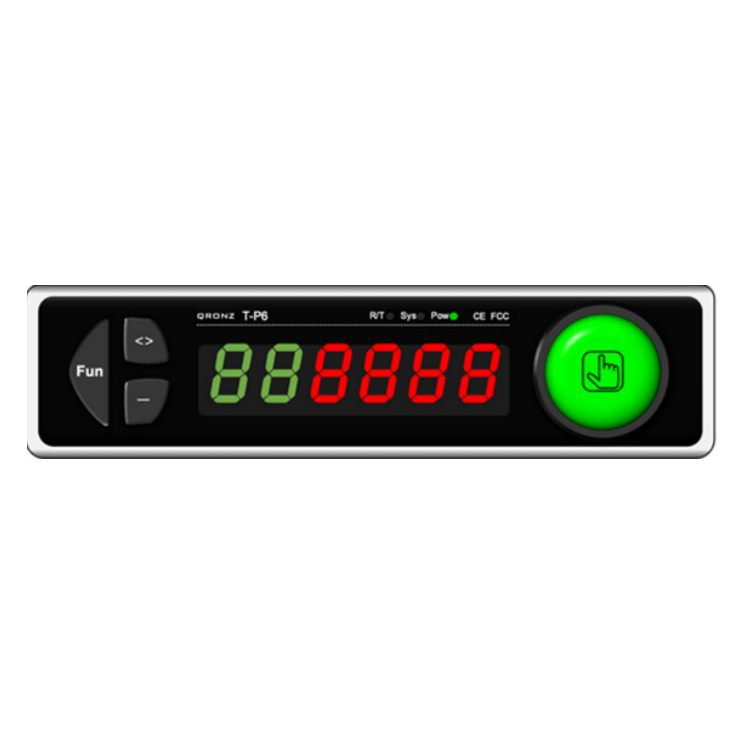

Digital tube combination: R6 6-digit red G2R4: First 2 digits green, last 4 digits red R4G2: First 4 digits red, last 2 digits green
Product Specifications
Power Supply Voltage and Current: DC 12V-30V
Maximum Current: 20-160mA/12V; 10-80mA/24V
Output Power: 1.08~2.16W
Communication Bus: RS485
Indicator Light: RGB three-color, 50,000 hours lifespan
Communication Rate: 38.4K baud rate
Protection: Overcurrent and overvoltage protection; reverse connection protection
Housing Material: High-molecular polymer
Operating Environment: -40℃ to 80℃ (non-condensing)
Humidity Environment: Below 90%RH, non-condensing
Protection Rating: IEC IP53 Certifications: CE FC ISO9001
T-P6 6-Digit Electronic Picking Label Parameter
Size specifications Function Description
Function Description
T-P6 6-Digit Electronic Picking Label Application
