Leenol T-P6IP67 6-Digit Waterproof Electronic Picking Label

Leenol T-P6IP67 6-Digit Waterproof Electronic Picking Label

The T-P6IP67 is a 6-digit waterproof electronic picking label, part of a warehouse 'Pick to Light' system, designed for efficient order fulfillment by visually guiding workers with illuminated numbers, ideal for wet or dusty environments due to its IP67 rating. It helps automate and speed up warehouse picking, reducing errors and improving accuracy in logistics and inventory management.

Styling Instructions

Model: T

Digital display digits: P6 (6-digit digital display)

Waterproof rating: IP67

Digital display combination: R6 (6 red digits) G2R4 (First 2 digits green, last 4 digits red)

Product Specifications

Power Supply Voltage and Current: DC 12V-30V

Maximum Current: 20-160mA/12V; 10-80mA/24V

Output Power: 1.08~2.16W

Communication Bus: RS485

Indicator Light: RGB three-color, 50,000 hours lifespan

Communication Rate: 38.4K baud rate

Electrical Protection: Overcurrent and overvoltage protection; reverse connection protection

Housing Material: High-performance polymer Operating Environment: -40℃ to 80℃ (non-condensing)

Humidity Environment: Below 90%RH, non-condensing

Protection Rating: IEC IP63

Certifications: CE FC ISO9001

Size specifications                                                              Function Description

Function Description

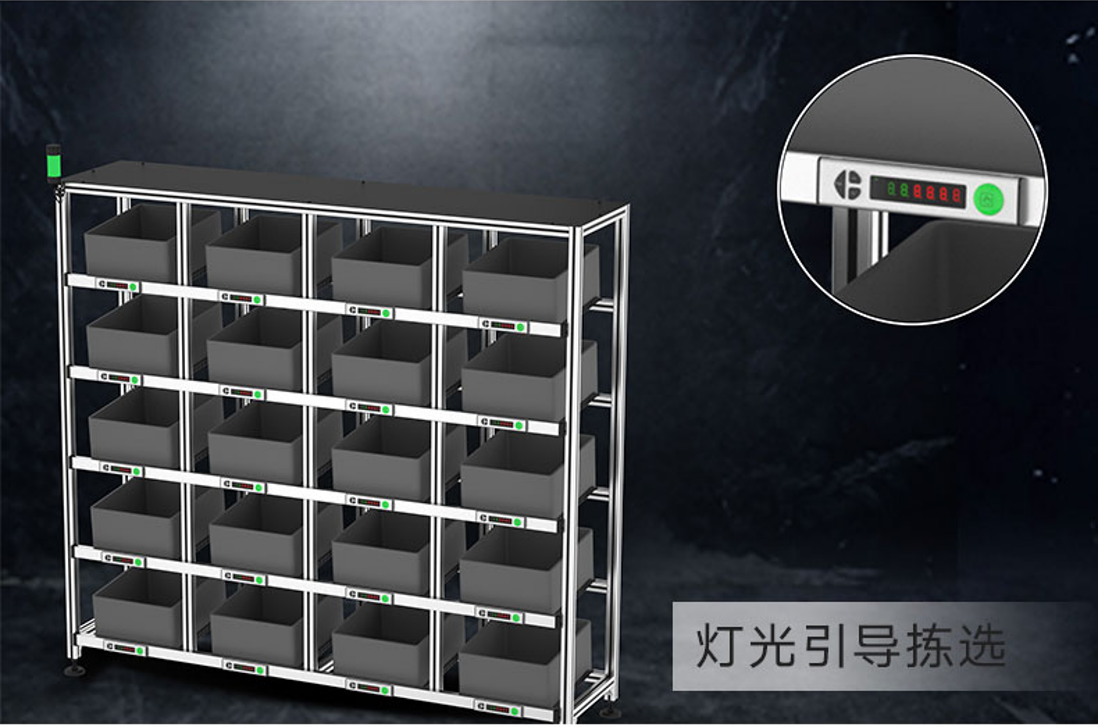

T-P6IP67 6-Digit Electronic Picking Label Application
