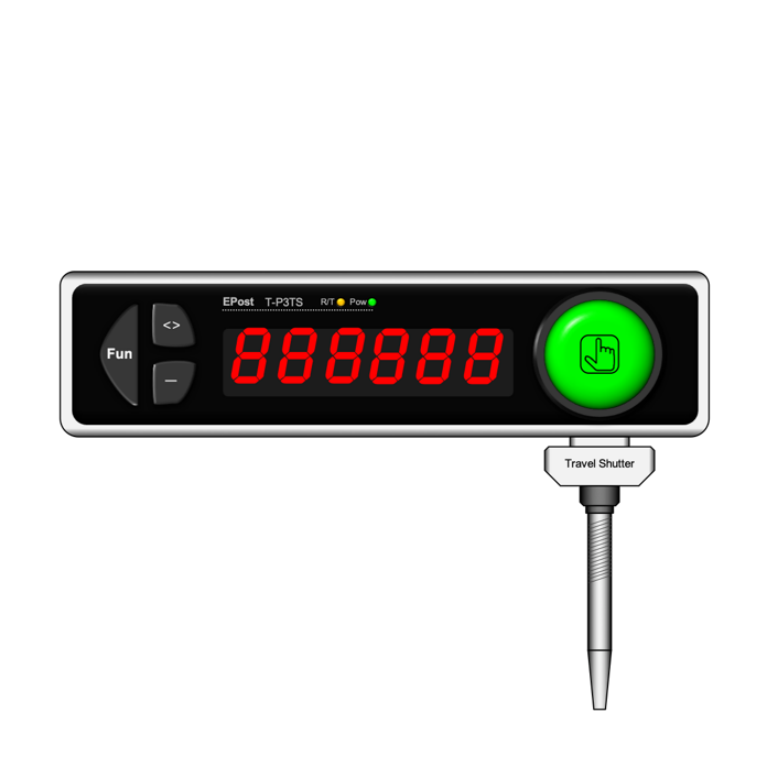

Leenol T-P6LT 6-Digit Electronic Picking Label Six-digit electronic picking label

Leenol T-P6LT 6-Digit Electronic Picking Label Six-digit electronic picking label

Styling Instructions

Model: T

Digital tube display: P6 6-digit display

Digital tube combination: R6 6 red digits G2R4: First 2 digits green, last 4 digits red R4G2: First 4 digits red, last 2 digits green

Product Specifications

Power Supply Voltage and Current: DC 12V-30V

Maximum Current: 20-160mA/12V; 10-80mA/24V

Output Power: 1.08~2.16W

Communication Bus: RS485

Indicator Light: RGB three-color, 50,000 hours lifespan

Communication Rate: 38.4K baud rate

Electrical Protection: Overcurrent, overvoltage protection; reverse connection protection

Housing Material: High-performance polymer

Operating Environment: -40℃ to 80℃ (non-condensing)

Humidity Environment: Below 90%RH, non-condensing

Protection Rating: IEC IP53 Certifications: CE, FCC, ISO9001


Size specifications                                                           Function Description

Function Description

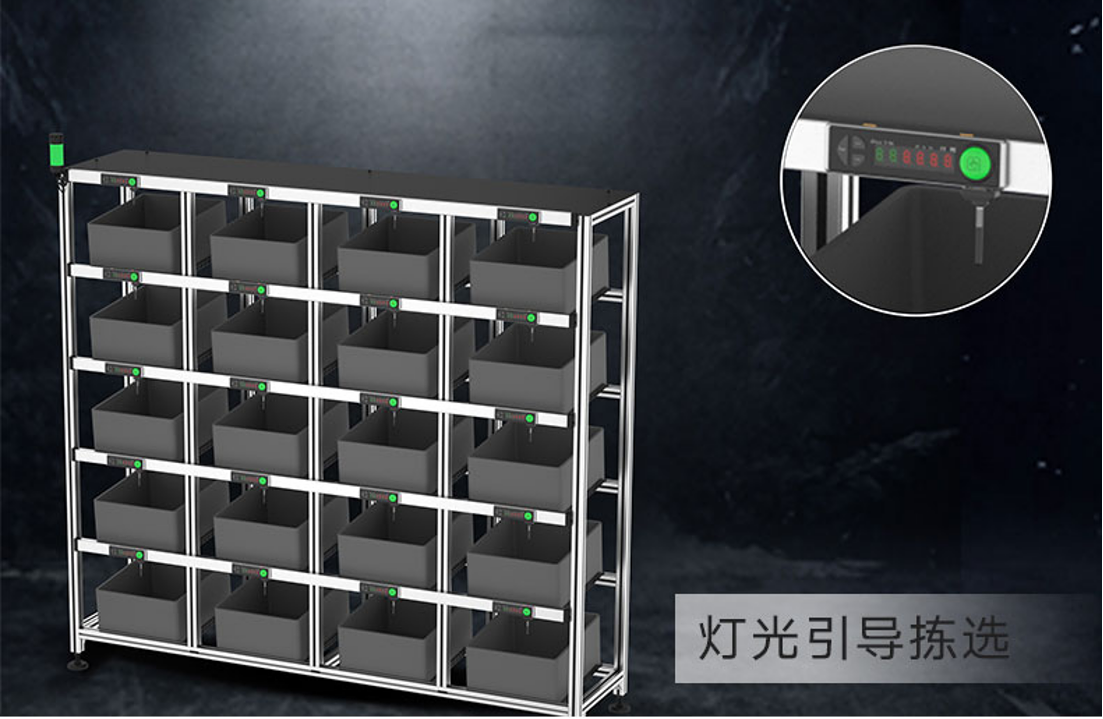

T-P6LT 6-Digit Electronic Picking Label Application
