Introduction

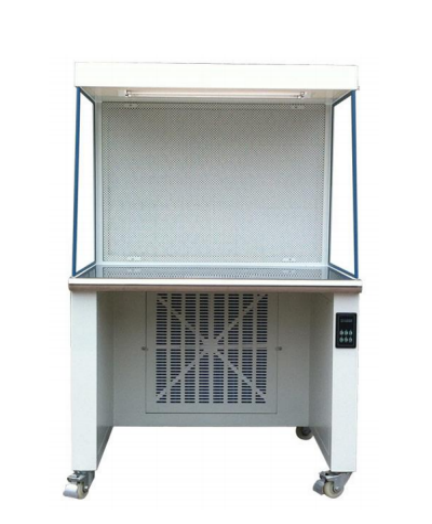

Single-Person Horizontal Laminar Flow Clean Bench Product Introduction LN-CJ-HS1(Explanation: VS = Vertical type; HS = Horizontal type)

(I) Product Overview:

Features 1: High-quality 1.2mm thick steel plate with powder coating

Features 2: 0.3 micron high efficiency 99.9955% filtration

Features 3: Front lifting windshield can be positioned arbitrarily

Features 4: US Federal Standard 209E Class 100 cleanroom standard

Features 5: Arc-shaped workbench surface conforms to ergonomic design

Features 6: Microcomputer control panel, three-speed adjustable

Features 7: 220V grounded safety three-prong socket

Features 8: UV germicidal lamps distributed on both sides

Features 9: T5 energy-saving lighting lamps distributed on both sides

Features 10: Shenfeng brand universal and directional casters

(II) Application Industries:

◆ Food, printing, packaging

◆ Pharmaceutical, medical device, hospital industry

◆ Electronics, optics, semiconductor industry

◆ Brewing, winemaking industry

◆ Microbiology laboratories


Material Options


Full stainless-steel clean bench	Powder-coated exterior with stainless-steel interior

Leenol Standard Clean Bench Technical Specifications

Model	LN-CJ-HS1	LN-CJ-HS2	LN-CJ-VS1	LN-CJ-VS2	SW-CJ-HVS1 (new)
Material	1.2 mm high-quality cold-rolled steel with baked-enamel finish; optional SUS304 full stainless steel
External size (mm)	900W720D1420H	1500W720D1420H	990W750D1620H	1500W750D1620H	980W700D1580H
Internal work zone (mm)	860W×520D×600H	1460W520D600H	830W700D520H	1340W600D520H	820W600D600H
Power supply	220V/50HZ，(other voltages customizable)
Blower / power	1 *120W	2 *120W	1 *120W	2 *120W	1 *120W
Pre-filter	48048020	48048020	48048020	48048020	48048020
HEPA filter	800×600*50	142060050	800×600*50	130060050	48048020
UV lamp	14W1PCS600mm	20W1PCS1200mm	14W2PCS600mm		14W1PCS600mm
LED lamp	14W1PCS600mm	20W1PCS1200mm	14W2PCS600mm		14W1PCS600mm
Air velocity	0.35-0.45m/s	0.35-0.45m/s	0.35-0.45m/s	0.35-0.45m/s	0.35-0.45m/s
Noise	≤62dB
Switch	3-speed LED touch control; independent UV & lighting switches
Net weight	90kg	110kg	110kg	140kg	90kg

LN-CJ-HS1 Single-Person Horizontal Clean Bench Detailed Parameters

NO	Name	Technical Configuration
1	External size	900W×720D×1420H (mm)
1	internal size	860W×520D×600H (mm)
2	Airflow pattern	Horizontal laminar flow (top-down intake, triple-stage filtration: pre, medium, HEPA)
3	Cleanliness	Class 100 (U.S. Fed. Std. 209E)
4	Colony count	≤ 0.5 CFU / m³·h; filtration efficiency ≥ 99.995 % for ≥ 0.3 µm particles (sodium-flame test)
5	Average velocity	≥ 0.5 m/s ± 20 % (adjustable)
6	Noise	≤62dB（A）
7	Vibration	≤ 3 µm (X, Y, Z axes)
8	llumination	≥ 300 lx; power 220 V / 50 Hz
9	Lamps	LED 14 W × 2; UV 14 W × 2
10	Blower	1 low-noise high-pressure centrifugal fan, 120 W rated
11	Filter sizes	Pre: 480 × 480 × 20 mm; HEPA: 800 × 600 × 50 mm
12	Weight	110KG
13	Design	Ergonomic arc work surface with novel perforated pattern for comfort
14	Windshield	5 mm full-tempered glass, counter-weight balanced, lift & position freely
15	Exterior	1.2 mm cold-rolled steel, four-process baked enamel in ivory white
16	Work surface	SUS304 stainless steel, 1.2 mm thick
17	Control	Variable-air-volume fan system with soft-touch voltage regulator to maintain ideal velocity
18	Electrical	Separate soft-touch switches for UV, lighting, and fan speed on control panel
19	Base	High-quality universal & fixed casters for easy positioning
20	Sealing	Dow Corning silicone sealant on all joints for excellent sealing and environmental safety

Product Technology Summary

The clean bench provides a dust-free local environment. It is simple, efficient and widely used in electronics, national-defense instruments, pharmaceuticals, tissue-culture, laboratories and other industrial or scientific research departments.

Working Principle (Horizontal VS Series)
Indoor air passes through a pre-filter, is pressurized by a low-noise fan into a plenum chamber, then flows uniformly through a HEPA filter, forming a laminar airflow that sweeps away dust and maintains a Class 100 (ISO 5) environment. The unit adopts an energy-saving top-mounted variable-air-volume system coupled with high-performance, long-life HEPA filters (≥ 99.995 % efficiency for ≥ 0.5 µm particles, sodium-flame method), meeting U.S. Federal Standard 209E.

Structure
Composed of pre-filter, fan, plenum chamber, and HEPA filter. Cabinet is formed by bending, assembling and welding steel plates, followed by anti-rust treatment and powder coating. Electrical control system is housed in the lower cabinet.

Safety Measures
Designed in strict accordance with international electrical-safety standards. UV and LED lamps are controlled separately. UV disinfection must be activated only when personnel are absent to avoid skin burns.

Model Nomenclature

HD (HS) = Horizontal flow (air blows horizontally toward operator)
VD (VS) = Vertical flow (air blows downward vertically)

Types of clean benches and their industry classifications


Single-person (single-sided) vertical type with powder-coated steel exterior	Single-person (single-sided) vertical type, all stainless steel	Double-person (single-sided) vertical type with powder-coated steel exterior	Double-person (single-sided) vertical type, all stainless steel

Single-person horizontal, powder-coated steel exterior	Single-person horizontal, all stainless steel	Double-person horizontal, powder-coated steel exterior	Double-person horizontal, all stainless steel

Negative pressure exhaust clean workbench	Edible mushroom production line workbench	Inoculation box clean bench	Optical darkroom ultra-clean bench
