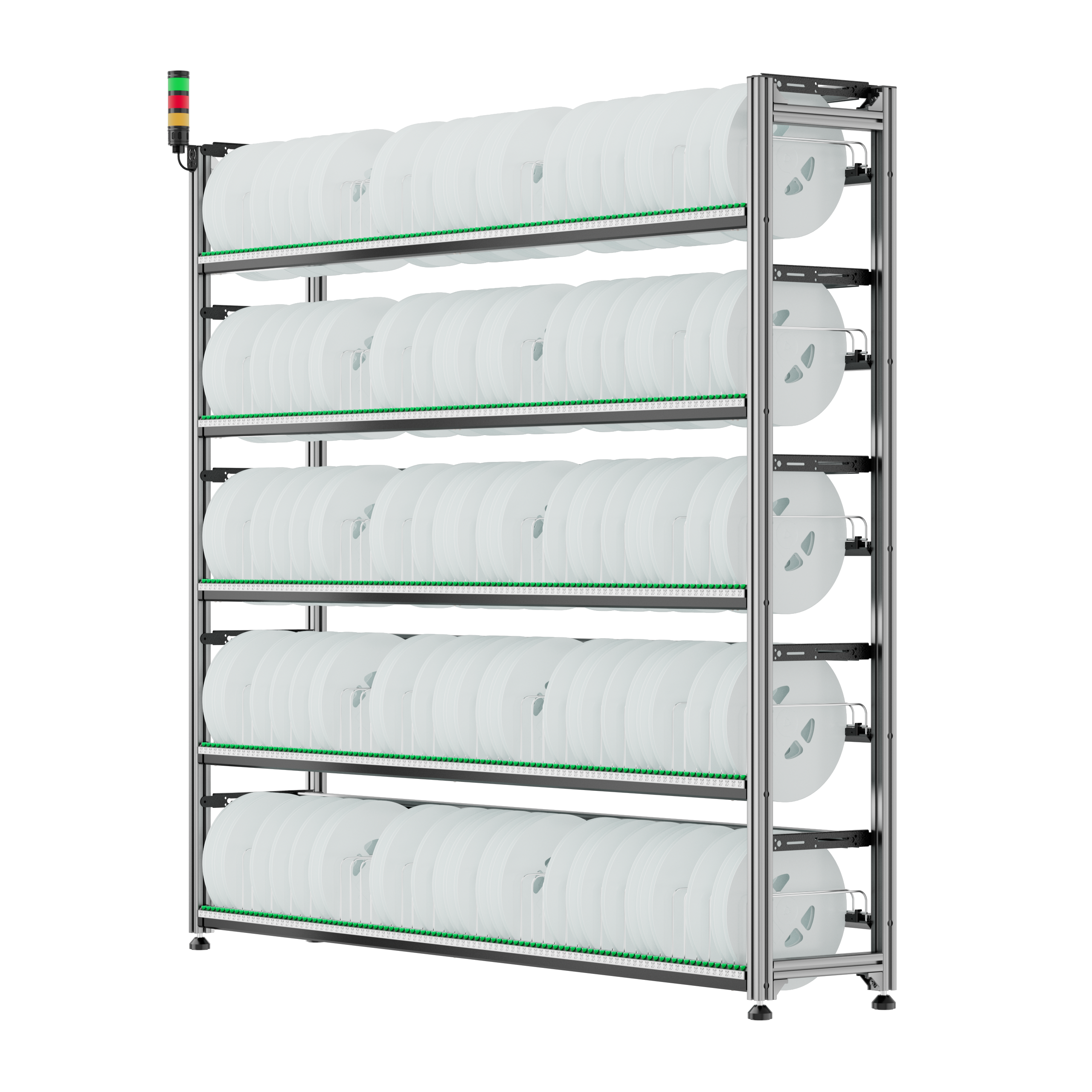

Leenol RACK-G3-SMDN-AL-B5-NSN(Tower light type) /SMT INTELLIGENT ELECTRONIC RACK Barcode Scanning Intelligent Material Storage Rack/SMT Esd PCB Storage Smart Storage Rack for Large Industrial Warehouse Intelligent SMT Component Rack
● 5 layers of sing le-s ided storage, each layer has 50-100 standard storage pos it ions, and each group has a tota l of 250-500 standard storage pos it ions ;
● The standard storage space is 16mm wide, the storage space barrier can be inserted and removed, and the storage space width can be adjusted;
● The storage unit is a multi-color LED aluminum alloy lamp group that can be quickly plugged and unplugged.
● The overa ll mater ia l is 4040 industr ia l a lum inum prof i le frame + a lum inum prof i le inte ll igent lamp group + sta in less stee l w ire gr i lle/ insertab le adjustment to store the inner w idth of the who le
● Scan type/pairing induction is optional
Product Name |
Barcode Scanning Intelligent Material Storage Rack |
Model |
RACK-G3-SMDS-ST-B5-NSN |
Applicable Tray |
13 inch plate material of various thicknesses |
Storage Quantity |
500 standard storage positions with an inner width of 16mm |
Shelf Weight |
100KG |
Shelf Load |
100KG/ layer |
Length |
2096*380*1940mm |
Store Lights |
Smart bus multi-color lights, support 7 colors |
Induction Mode |
Non-contact mutual photoelectricity |
Take the height of the top layer |
1619mm |
Storage compartment partition |
Flexible design, can be plugged and unplugged to adjust the width of the storage space |
Protect The Fins |
Protective fins are optional for vacuum packaging materials |
Working Voltage |
DC 24V |
Power Rating |
0.1KW |
Network |
Uplink network cable communication, downlink 485 communication. |
Operational Environment |
Humidity 40-70% temperature 20-28℃ |
| Product model | RACK-G3-SMDN-AL-B5-NSN(Tower light type) |
| Supply voltage | DC24V |
| Working current |
50 indicator light bars ≦ 500mA @DC24V six colors maximum total current ≦ 2600mA @DC24V |
| Communication bus IB | 38.4K baud rate, maximum transmission distance of 200 meters |
| Electrical protection |
Overcurrent, overvoltage protection, reverse connection protection |
| Maximum indicated storage location | 50 pcs |
| Response time | <30ms |
| Working environment | Temperature: -20℃ to +50℃(-4F to +122°F) Humidity: 90% at 55'℃ (no condensation) |
